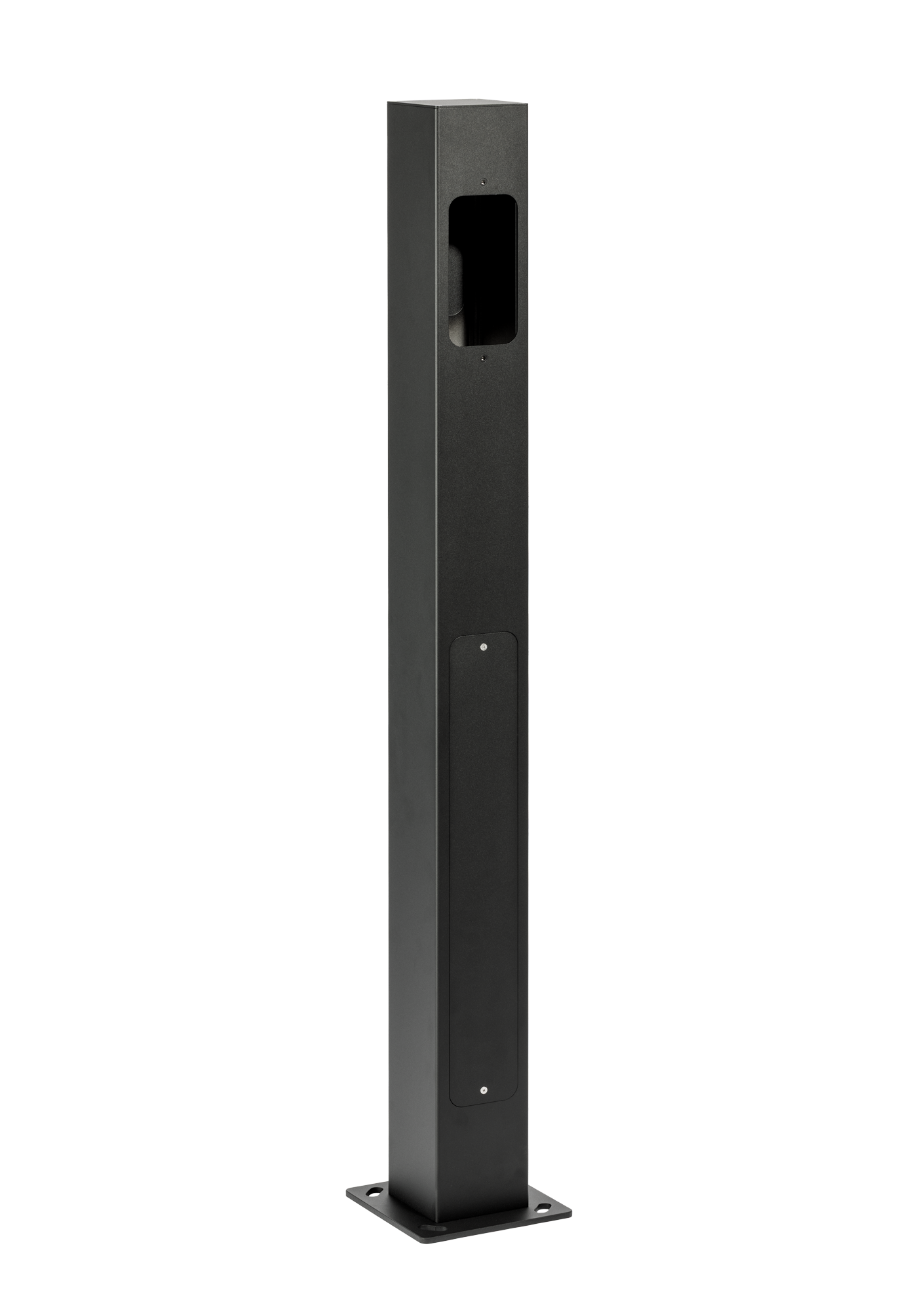

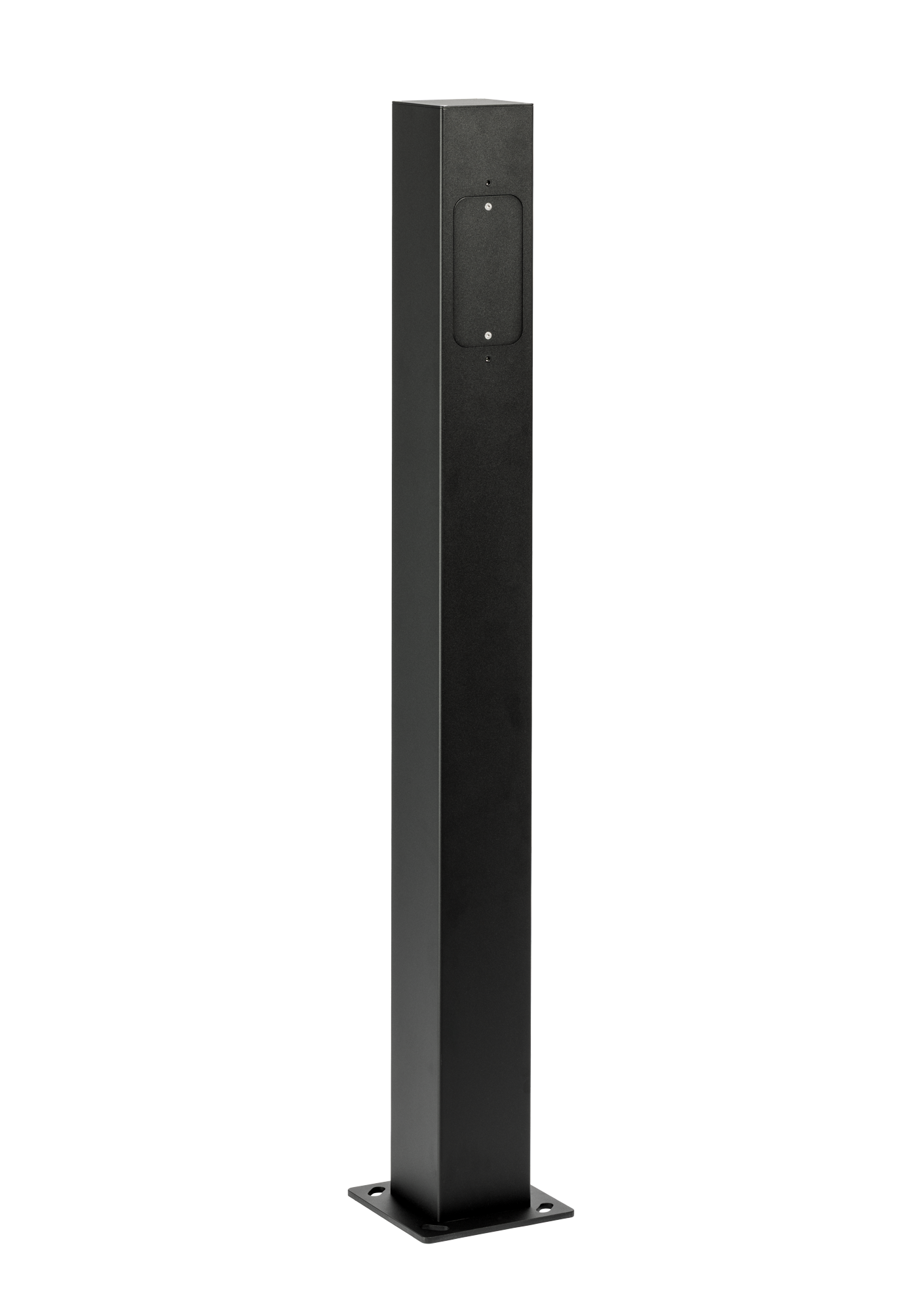

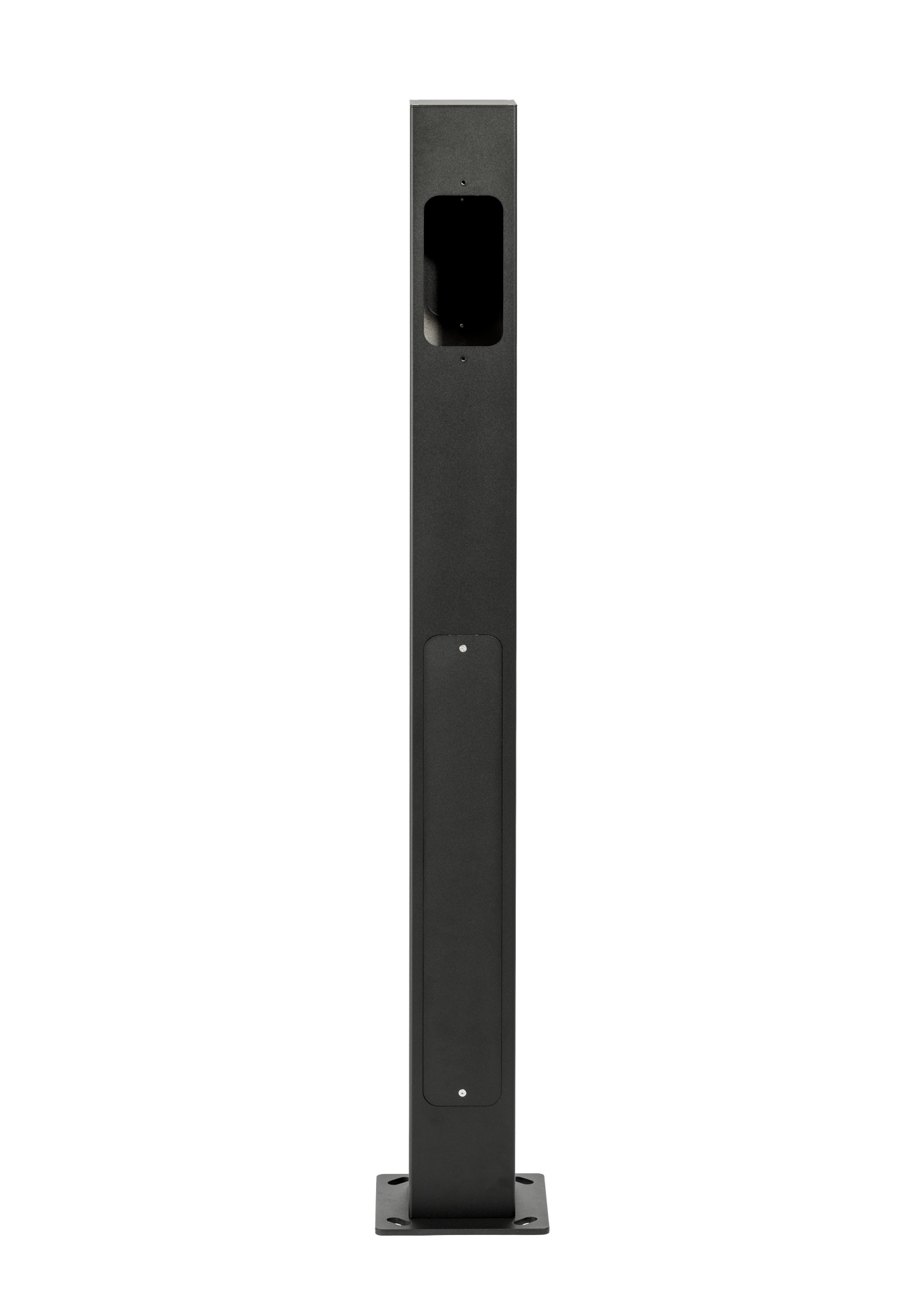

Core Pro Rail
MX-CR-PRO-RAIL

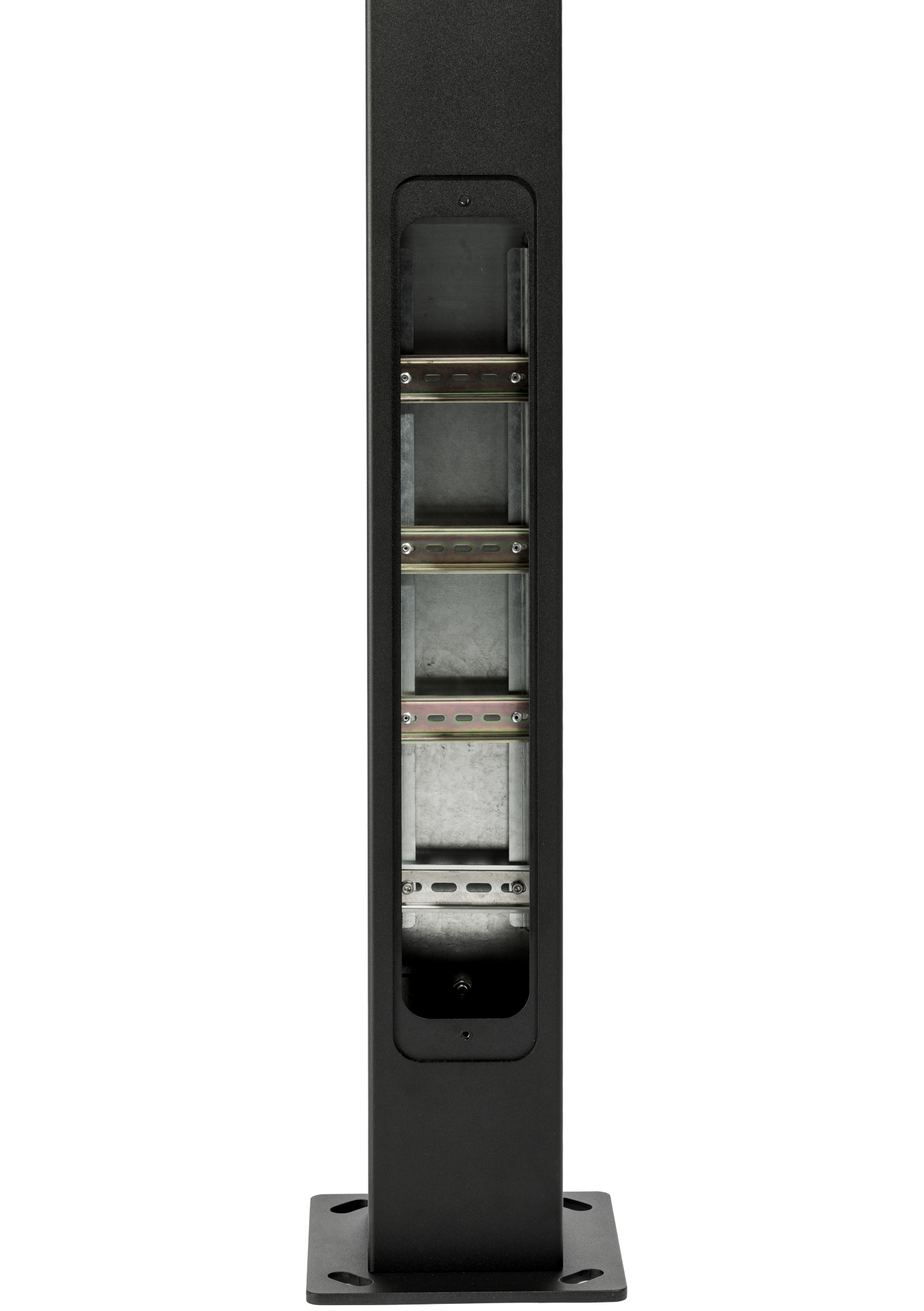

Core Pro Rail designed for larger and more demanding installations. It can support up to four chargers, allows daisy-chain wiring and includes a dedicated service compartment for electrical equipment. Made from high-quality aluminium alloy and powder-coated in RAL9005, it provides a durable and professional finish. The pedestal can be installed on the ground or mounted to the ceiling, making it a flexible solution for more complex infrastructure projects.
Specifications
- Material: Powder coated aluminium(EN-AW6060 T66)
- Surface treatment : Powder coated ISO 12944, Category C4
- Color: RAL9005
- Net weight: 10.9kg
- Net dimensions: 1491x135x135mm
- Base plate dimensions: 8x220xx220mmCC160
- Gross weight: 12.1kg
- Gross dimensions: 1540x238x238mm
- IP44/IK10
- Additional accessories:
Cable grommets M20 (x2) ;M25(x2) ;M32(x2)
